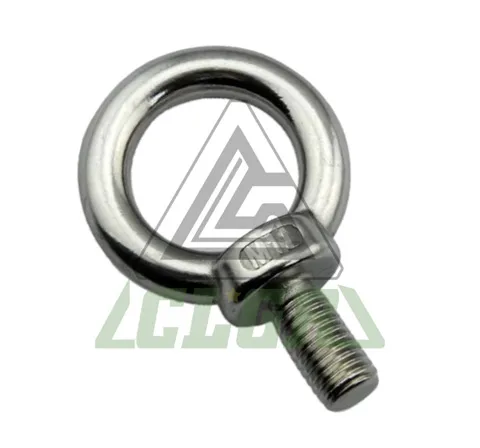

CLGR® Stainless Steel Drop Forged DIN 580 Lifting Eye Bolt

Name: CLGR® Stainless Steel Drop Forged DIN 580 Lifting Eye Bolt
Brand: CLGR®

CLGR® Stainless Steel Drop Forged DIN580 Lifting Eye Bolt also called Eye Bolt forged DIN 580 Stainless.

Made from marine grade stainless steel 304/316, drop forged and highly polished stainless finish, has highly corrosion resistance.

The Eyebolt is an approved and certified component specifically designed for lifting operations, with the versatility to be used in both axial and angular loading scenarios.

In terms of applications, it serves as a reliable connection point for a range of tasks including anchoring, rigging, pulling, lifting, and hoisting. It is compatible with ropes, cables, shackles, and hooks, and can be installed in multiple ways: it can be threaded into steel equipment, machines, and structures, or bolted through steel and timber profiles to meet diverse operational needs.

Note：The working load limit (WLL) only apply in axial direction and assume that the eye bolt is screwed in completely and lies flat over the entire surface.

To Get A Quote >

CLGR® Stainless Steel Drop Forged DIN 580 Lifting Eye Bolt

Overview of Stainless Steel Drop Forged DIN 580 Lifting Eye Bolt

Brand	CLGR®
Technical Notes	Technical Notes
Material	Forged eye bolt made from Stainless Steel 304 / 316
Processing	Drop Forged
Finish	Highly Polishing
Size	M6, M8, M10, M12, M14, M16, M20, M22, M24, M27, M30, M33, M36, M39, M42, M45, M48, M52, M56, M64
Note	Never to be used for overhead lifting

Specifications of Stainless Steel Drop Forged DIN 580 Lifting Eye Bolt

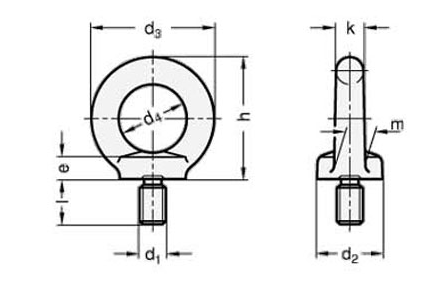

Part No.	d1	d2	d3	d4	e	h	k	l	SWL	Weight Each
Part No.	mm								kgs
CR-SS-F-580-EB-06	M6	17	28	16	6	31	6	13	70	0.06
CR-SS-F-580-EB-08	M 8	20	36	20	6	36	8	15	140	0.08
CR-SS-F-580-EB-10	M 10	25	45	25	8	45	10	18	230	0.11
CR-SS-F-580-EB-12	M 12	30	54	30	10	53	12	22	340	0.18
CR-SS-F-580-EB-14	M14	35	63	35	12	62	14	28	490	0.29
CR-SS-F-580-EB-16	M 16	35	63	35	12	62	14	28	700	0.29
CR-SS-F-580-EB-20	M 20	40	72	40	14	71	16	30	1200	0.45
CR-SS-F-580-EB-22	M22	45	81	45	16	80	18	35	1500	0.67
CR-SS-F-580-EB-24	M 24	50	90	50	16	90	20	38	1800	0.87
CR-SS-F-580-EB-27	M27	50	90	50	18	90	20	38	2500	0.88
CR-SS-F-580-EB-30	M 30	65	108	60	18	109	24	45	3200	1.66
CR-SS-F-580-EB-33	M33	65	108	60	22	109	24	45	4300	1.72
CR-SS-F-580-EB-36	M 36	75	126	70	22	128	28	55	4600	2.65
CR-SS-F-580-EB-39	M39	75	126	70	26	128	28	55	6100	2.8
CR-SS-F-580-EB-42	M42	85	144	80	30	147	32	65	7000	4.03
CR-SS-F-580-EB-45	M45	85	144	80	30	147	32	65	8000	4.25
CR-SS-F-580-EB-48	M48	100	166	90	35	168	36	70	8600	6.38
CR-SS-F-580-EB-52	M52	100	166	90	35	168	36	70	9900	6.66
CR-SS-F-580-EB-56	M56	110	184	100	38	187	42	80	11500	8.8
CR-SS-F-580-EB-64	M64	120	206	110	42	208	48	90	16000	12.4
