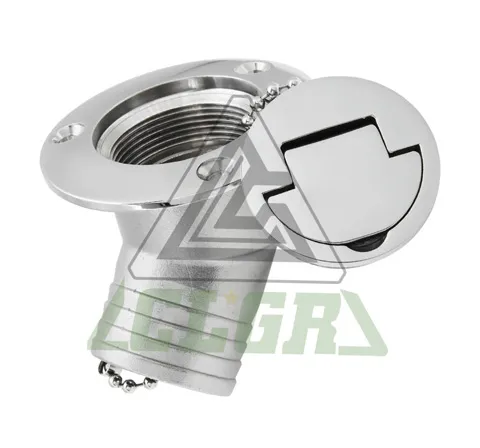

CLGR® Stainless Steel Deck Filler Cap 45 Degree

CLGR® Stainless Steel Deck Filler Cap 45 Degree, also known as Stainless Steel Deck Fill, Stainless Steel Hose Deck Fill.

Available in sizes 1.5" and 2", the cap features a 45-degree angle for easier access and installation.

The 45 Degree 316 Stainless Steel Deck Fill is constructed of high-quality Type 316 marine-grade stainless steel and is cloth-polished to a beautiful mirror finish which enhances corrosion resistance.

It provides a tight seal and includes a retaining chain to prevent loss.

Designed to fit standard deck filler necks on most boats and yachts. Ideal for fuel, gas, or water deck fillers on sailboats, yachts, and motorboats.

To Get A Quote >

CLGR® Stainless Steel Deck Filler Cap 45 Degree

Overview of CLGR® Stainless Steel Deck Fill 45 Degree

Brand	CLGR®
Material	Stainless Steel 316
Angle	45 Degrees
Surface Finished	Mirror Polished
Craft	Casting
Origin	China
Mark	Blank, Fuel, Water, Diesel, Gas, Waste

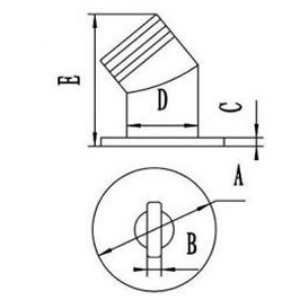

Specifications of CLGR® Stainless Steel Deck Fill 45 Degree

Part No.	Size	A	B	C	D	E
CR-SSDF45-2	2″	88mm	10mm	6mm	∅50.8mm	97mm
CR-SSDF45-1.5	1.5″	83mm	7mm	5mm	∅45.5mm	80mm
