CLGR® Stainless Steel Corner Angle Bracket 6 Holes, also known as Stainless Steel Corner Angle Bracket, Stainless Steel Corner Connecting Bracket.
These 90-degree stainless steel Corner Angle Bracket are easy to work with and versatile, ideal for marine and outdoor use such as jetties, swim platforms, decking, balcony's etc.
Made from 316 (ANSI graded) marine grade stainless steel to prevent corrosion.
Each bracket has 6 mounting holes.
The Stainless Steel Corner Angle Bracket is subjected to mirror polished surface treatment to ultimately present a shiny mirror like surface texture.
These brackets are thicker than many alternatives, giving a robust joint.
Three sizes available in 12mm,13mm and 15mm, other sizes can also be customized.
| Brand | CLGR® |
| Material | Stainless steel 304/316 corner angle bracket |
| Processing | Stamping / Machining |
| Finish | Highly Polished |
| Size | 41mm, 56mm, 80mm |
| Tips | 90 degree right angle.4 to 6 predrilled holes – depending on size. |

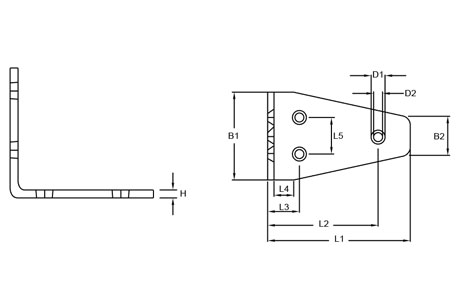

Part No. | L1 | L2 | L3 | L4 | L5 | H | D1 | D2 | B1 | B2 | WT |
mm | |||||||||||
CRSSAB601 | 41 | 35 | 18 | 12 | 12 | 3 | 8.4 | 5.3 | 25 | 14 | 0.032 |
CRSSAB602 | 56 | 47.5 | 18.5 | 12 | 17 | 3 | 8.4 | 5.3 | 35 | 16.5 | 0.063 |
CRSSAB603 | 80 | 71 | 24 | 21 | 24 | 4 | 8.4 | 5.3 | 50 | 26 | 0.18 |
