CLGR® Stainless Steel C Split Link, also known as Split link, C Link, Stainless Steel C Connect Link, Sister Clips for commercial fishing or C Ring Link.
This high-performance 'C-link' serves as an ideal solution for net repair and reinforcement applications. Engineered for precision, it features seamless interconnectivity with other components to create secure, durable connections.
Stainless Steel C-Links are designed for applications where two chains require connecting or they require connection to an end component. These are not recommended for heavy loads. C Links are typically used in the fishing, education, sports, building and heavy industrial sectors.
For guaranteed reliability, choose the CLGR’s stainless steel 'C-link' - your trusted partner in netting solutions.
| Brand | CLGR® |
| Size | 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8" 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 19mm, 22mm We can also customize it according to your requirement. |
| Material | Stainless Steel (AISI 304 / AISI 316) |
| Safety Factor | 5:1 |
| Processing | Stamping (Wire forming) |
| Surface Finish | Highly Polishing |

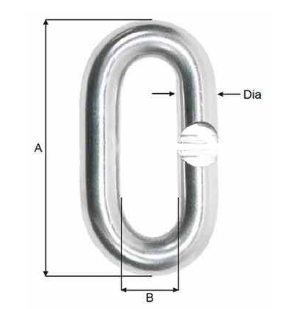

Part No. | Size | Dia. mm | MBL kN | A mm | B mm | Weight kg |
CRSSCLW3/16" | 3/16" | 5 | 2.4 | 20 | 8 | 0.01 |
CRSSCLW1/4" | 1/4" | 6 | 3.5 | 24 | 9 | 0.02 |
CRSSCLW5/16" | 5/16" | 8 | 6.2 | 32 | 12 | 0.04 |
CRSSCLW3/8" | 3/8" | 10 | 9.7 | 40 | 15 | 0.08 |
CRSSCLW1/2" | 1/2" | 12 | 16.3 | 52 | 20 | 0.17 |
CRSSCLW5/8" | 5/8" | 16 | 24.7 | 64 | 24 | 0.32 |
CRSSCLW3/4" | 3/4" | 19 | 34.9 | 76 | 28 | 0.5 |
CRSSCLW7/8" | 7/8" | 22 | 41 | 88 | 33 | 0.75 |
CRSSCLW1" | 1” | 25 | 2.2T SWL | 94 | 35 | 1.1 |
