CLGR® Matal Washer Steel Washer Donuts Shape, also known as Metal Washer Round Hole, is a type of footrope components. Engineered for durability and performance, this component exemplifies the quality you can expect from CLGR® as your dedicated rigging hardware supplier.
Metal flat washers are commonly used for load distribution, as spacers, as preload indicators, and in applications in which the diameter of the hole is larger than diameter of the head of the fastener that is being installed.
Brand | CLGR® |
Material | St235JR |
Processing | Stamping |
Finish | Powder Coated (Green color) |
Size | 8x100x40mm, 8x100x50mm, 8x120x40mm, 8x120x50mm, 8x150x40mm, 8x150x50mm, 8x150x60mm, 10x120x25mm, 10x120x30mm, 10x120x50mm, 10x120x60mm, 10x150x40mm, 10x150x50mm, 10x150x60mm, 10x150x75mm, 10x200x75mm, 12x150x70mm, 12x200x75mm, 14x150x75mm, 14x200x75mm, 20x200x75mm, 25x200x75mm |
Note | Customized is Available |

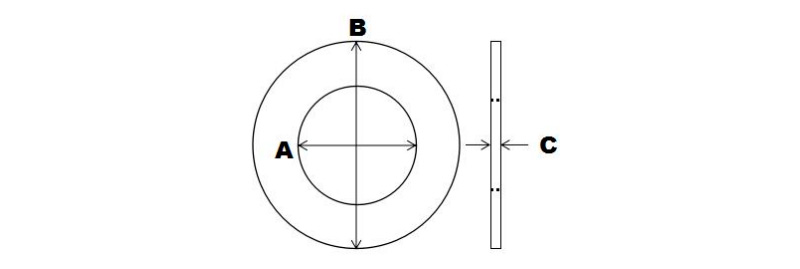

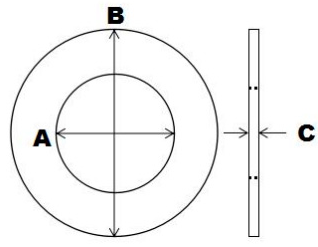

Part No. | A (mm) | B (mm) | C (mm) | Weight/100 (kg) | For Chain Dia. |
CRMWGR810040 | 40 | 100 | 8 | 40.0 | 10 |
CRMWGR810050 | 50 | 100 | 8 | 37.0 | 13 |
CRMWGR812040 | 40 | 120 | 8 | 60.0 | 10 |
CRMWGR812050 | 50 | 120 | 8 | 55.0 | 13 |
CRMWGR815040 | 40 | 150 | 8 | 120.0 | 10 |
CRMWGR815050 | 50 | 150 | 8 | 110.0 | 13 |
CRMWGR815060 | 60 | 150 | 8 | 100.0 | 16 |
CRMWGR1012025 | 25.5 | 120 | 10 | 78.0 | 0 |
CRMWGR1012030 | 30.5 | 120 | 10 | 75.0 | 0 |
CRMWGR1012050 | 50 | 120 | 10 | 70.0 | 13 |
CRMWGR1012060 | 60 | 120 | 10 | 65.0 | 16 |
CRMWGR1015040 | 40 | 150 | 10 | 150.0 | 10 |
CRMWGR1015050 | 50 | 150 | 10 | 140.0 | 13 |
CRMWGR1015060 | 60 | 150 | 10 | 130.0 | 16 |
CRMWGR1015075 | 75 | 150 | 10 | 102.0 | 19 |
CRMWGR1020075 | 75 | 200 | 10 | 233.0 | 19 |
CRMWGR1215070 | 70 | 150 | 12 | 135.0 | 19 |
CRMWGR1220075 | 75 | 200 | 12 | 340.0 | 19 |
CRMWGR1415075 | 75 | 1500 | 14 | 140.0 | 19 |
CRMWGR1420075 | 75 | 200 | 14 | 327.0 | 19 |
CRMWGR2020075 | 75 | 200 | 20 | 560.0 | 19 |
CRMWGR2520075 | 75 | 200 | 25 | 700.0 | 19 |
