CLGR® Flat Mount Pulley Blocks Double Sheaves

Name: CLGR® Flat Mount Pulley Blocks Double Sheaves
Brand: CLGR®

CLGR® Flat Mount Pulley Blocks Double Sheaves, also known as Flat Mount Wire Rope Block Double.

This flat mount pulley block features a double sheave design for efficient rope or cable handling.

The flat mounting allows easy installation on flat surfaces, beams, or frames. Built for smooth operation, it reduces friction and wear during lifting or pulling tasks.

Ideal for rigging, garage use, or workshop applications where space is limited.

To Get A Quote >

CLGR® Flat Mount Pulley Blocks Double Sheaves China Manufacturer

CLGR® Flat Mount Pulley Blocks Double Sheaves

CLGR® Flat Mount Pulley Blocks Double Sheaves China Supplier

Overview of CLGR® Flat Mount Pulley Blocks Double Sheaves

Brand	CLGR®
Surface Finished	Zinc plated
Sheave	Double sheave
Size	1½”, 2″, 2½”, 3″, 3½”, 4″,5″.

Specification of CLGR® Flat Mount Pulley Blocks Double Sheaves

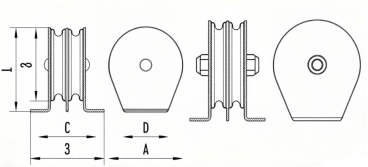

Drawing of CLGR® Flat Mount Pulley Blocks Double Sheaves China Supplier

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	C	D	Weight(KG)
CRFMBDS-1	1½”	525	3/16″	38	98.5	41	67.5	52.5	17.5	0.42
CRFMBDS-2	2″	600	3/16″	50	115	54	67.5	52.5	17.5	0.62
CRFMBDS-3	2½”	685	1/4″	63.5	140	67	68	53	17.5	0.85
CRFMBDS-4	3″	800	1/4″	75	156	80	68	53	17.5	1
CRFMBDS-5	3½”	1550	5/16″	88	198.5	95	115	91	25.5	2.6
CRFMBDS-6	4″	1700	3/8″	100	213.5	108	116	92	25.5	2.6
CRFMBDS-7	5″	1850	3/8″	125	240	134	116	92	25.5	3.8
