CLGR® Chain Tensioner U-Adjuster Dogbone Shackle Tensioner

Name: CLGR® Chain Tensioner U-Adjuster Dogbone Shackle Tensioner
Brand: CLGR®

CLGR® Chain Tensioner U-Adjuster Dogbone Shackle Tensioner, also known as Chain Tensioner Dogbone Shackle Double type.

It is a heavy-duty tensioning device designed to connect and tighten chains in demanding applications. Its double shackle mechanism allows for precise adjustment and secure gripping on both ends, providing reliable tension control for heavy chains.

The twin U-shaped shackle design offers greater adjustment range than single-type tensioners, making it suitable for joining chains, adjusting chain length, and maintaining consistent tension in applications such as tire chains, mooring systems, and industrial chain assemblies.

Manufactured from high-strength steel with a corrosion-resistant finish, this double-type chain tensioner delivers durability and dependable performance in harsh environments. The threaded body and nut system allow easy on-site adjustment without special tools.

Available in various sizes to suit different chain diameters and load requirements. Custom configurations available upon request. Contact us for more details.

To Get A Quote >

Overview of CLGR® Chain Tensioner U-Adjuster Dogbone Shackle Tensioner

Brand	CLGR®
Material	Alloy Steel
Diameter	18MM to 80MM
Surface finish	Hot Dip Galvanizing
Application	Industrial, Household, Marine Fender, Port Fender
Tips	Customization Available

Specification of CLGR® Chain Tensioner U-Adjuster Dogbone Shackle Tensioner

Chain Tensioner U-Adjuster Dogbone Shackle Tensioner Drawing:

Chain Tensioner U-Adjuster Dogbone Shackle Tensioner Drawing

Part No.	Model	Size(mm)
Part No.	-	A	B	C	D	T	X	Y
CRCTDS30	M30	290	110	170-220	172	28	165	55
CRCTDS36	M36	330	125	195-260	198	32	195	65
CRCTDS39	M39	365	140	215-280	220	36	215	73
CRCTDS42	M42	400	150	240-310	237	40	230	80
CRCTDS45	M45	430	160	255-335	257	40	250	90
CRCTDS48	M48	455	170	275-355	271	45	265	95
CRCTDS52	M52	485	185	290-375	292	45	285	100
CRCTDS56	M56	520	195	310-410	312	50	300	105
CRCTDS60	M60	560	210	335-440	335	55	325	115
CRCTDS64	M64	600	225	360-470	358	60	345	120
CRCTDS68	M68	640	245	380-500	385	60	365	120

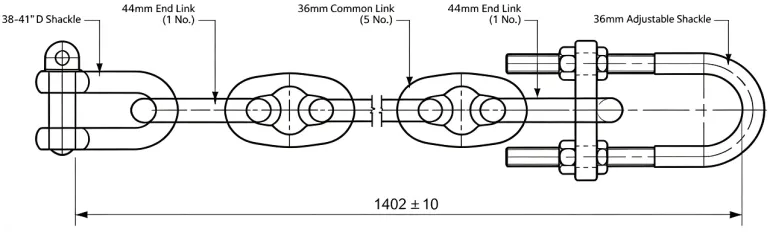

Chain Tensioner Dogbone Shackle Diagram:

Chain Tensioner Dogbone Shackle Diagram
