CLGR® Marine Mooring Rings for Fish Farm

Name: CLGR® Marine Mooring Rings for Fish Farm
Brand: CLGR®

CLGR® Marine Mooring Rings for Fish Farms, also known as Aquaculture Mooring Rings or Connection Rings, are forged circular steel fittings designed to provide a secure, permanent anchor point for mooring lines on docks, piers, decks, and fish farm structures.

These rings typically serve as central joining points in multi-leg mooring systems. Forged for high strength and durability, they connect easily to shackles and are built to handle the constant tension and dynamic loads found in aquaculture environments.

Suitable for fish cages, floating platforms, and other marine mooring applications. Available in various sizes to suit different load requirements. Custom configurations available upon request. Contact us for more details.

To Get A Quote >

Overview of CLGR® Marine Mooring Rings for Fish Farm

Brand	CLGR®
Material	Alloy Steel,Forging
Application	Used as Central Joining Points for Mooring
Diameter	19MM-96MM
Ring Size	1.6d(Body Dia.) x 8d(OD)
Surface	Black Tar/ H.D.Galvanized
Tips	Customization Available

Specification of CLGR® Marine Mooring Rings for Fish Farm

Drawing of CLGR® Marine Mooring Rings for Fish Farm

Part No.	Chain Size	Diameter	Overall Diameter	Weight	Breaking Load	Proof Load
Part No.	(mm)	(d mm)	(mm)	kg	KN	KN
CRMMR19	19	30.4	152	2.18	211	150
CRMMR25	25	40	200	4.96	372	285
CRMMR32	32	51.2	256	10.39	583	417
CRMMR40	40	64	320	20.31	896	640
CRMMR50	50	80	400	39.67	1370	981
CRMMR56	56	89.6	448	55.77	1710	1220
CRMMR64	64	102.4	512	83.2	2190	1560
CRMMR76	76	121.6	608	139.3	3010	2150

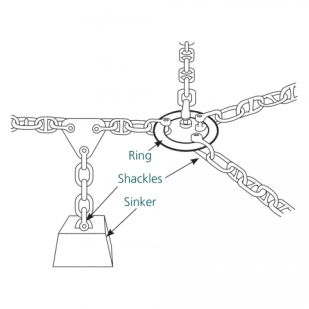

application-of-mooring-ring-for-farms
