CLGR® Four Leg Wire Rope Sling

Name: CLGR® Four Leg Wire Rope Sling
Brand: CLGR®

CLGR® Four Leg Wire Rope Sling, also known as CLGR® 4-Leg Wire Rope Sling, Quadruple Leg Chain Sling, Quad Leg Chain Sling.

Wire rope slings are a common choice in the lifting industry. They are more cost - efficient than chain slings and stronger, more durable, and more temperature - resistant than many synthetic lifting slings.

Quad leg bridles help with load stability and control during the lift and are ideal for lifts where multiple pick points are needed.

Along with these built - in advantages, choosing a 4 - leg bridle sling results in additional versatility. When compared to a 2 - leg or 3 - leg wire rope sling, you'll find that a four - leg lifting sling gives you the best load stability.

Slings made with steel cables of wire strength in 1770 or 1960 N / mm2 crimping cylindrical aluminium sleeves according PN- EN 13411-3.

Available with vinyl or metal load tag.

Proof-testing available upon request.

To Get A Quote >

Overview of CLGR® Four leg wire rope sling

Brand	CLGR®
Standard	EN13414
Material	Super Mild Steel
Safety Factor	5:1
Size	6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 24mm 28mm, 32mm, 38mm, 40mm, 44mm, 52mm, 56mm
Country of Origin	China

Specifications of CLGR® Four leg wire rope sling

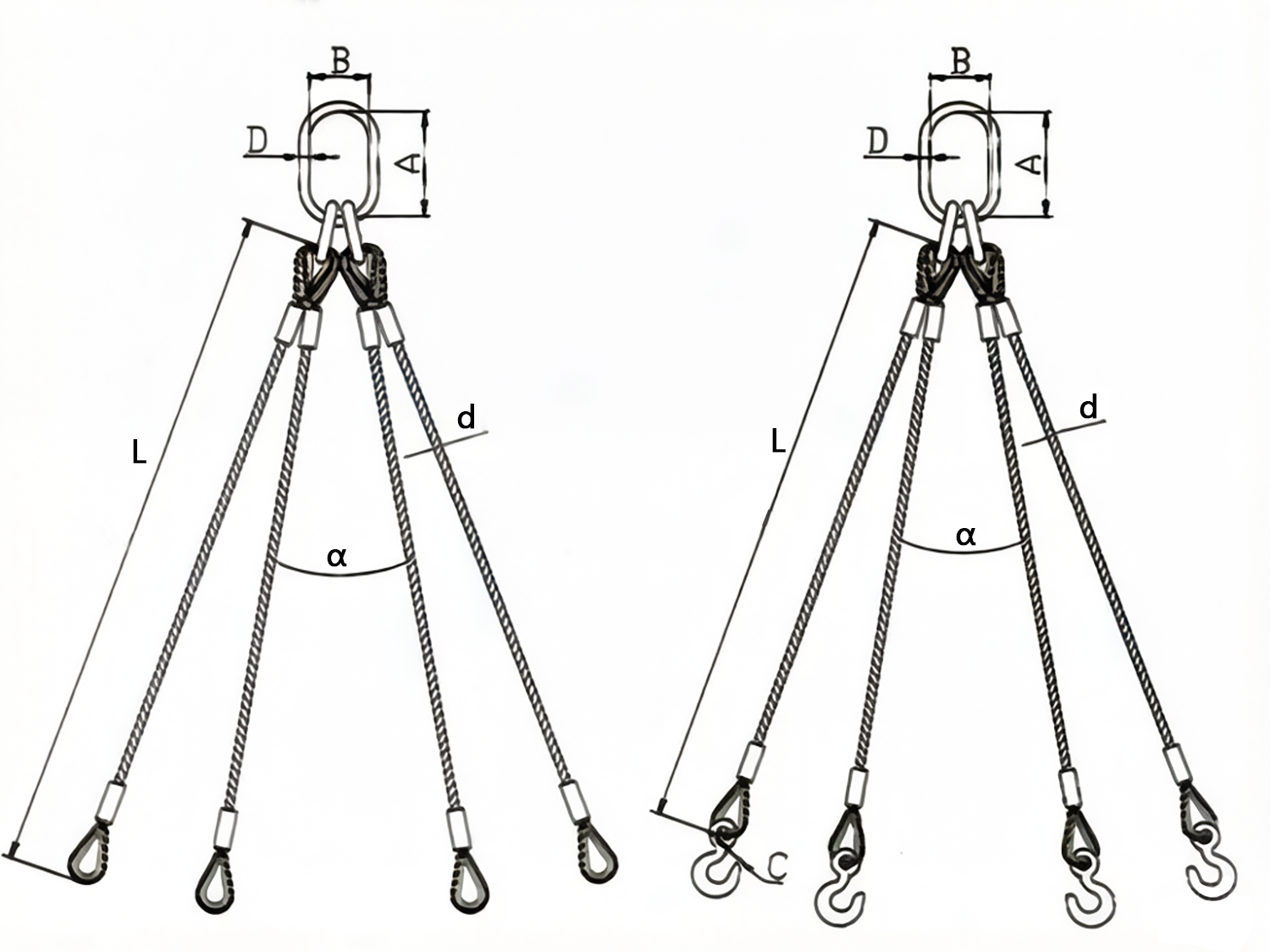

drawing-of-clgr®-four-leg-wire-rope-sling-china-supplier

Part No.	Rope dia. (mm)	WLL(KN) α≤90o	WLL(KN) 90o≤α≤120o	Main Loop dimension AｘBｘD(mm)	Assistant Loop dimension AｘBｘD(mm)	Dimension of hook opening C(mm)
CR4LWRS06	6	6.10	4.40	110ｘ60ｘ14	85ｘ40ｘ12	24
CR4LWRS08	8	10.30	7.40	110ｘ60ｘ14	85ｘ40ｘ12	25
CR4LWRS10	10	16.60	11.90	110ｘ60ｘ14	85ｘ40ｘ12	27
CR4LWRS12	12	24.80	17.70	160ｘ90ｘ18	100ｘ60ｘ14	30
CR4LWRS14	14	33.00	23.60	160ｘ90ｘ20	100ｘ60ｘ14	38
CR4LWRS16	16	45.40	32.40	180ｘ100ｘ22	150ｘ70ｘ18	38
CR4LWRS18	18	55.70	39.80	180ｘ100ｘ22	150ｘ70ｘ18	45
CR4LWRS20	20	68.00	48.60	270ｘ140ｘ28	160ｘ90ｘ22	45
CR4LWRS24	24	102.90	73.50	270ｘ140ｘ32	180ｘ100ｘ25	61
CR4LWRS28	28	144.10	102.90	260ｘ140ｘ36	一	66
CR4LWRS32	32	185.40	132.50	340ｘ180ｘ45	一	87
CR4LWRS38	38	247.00	176.60	340ｘ180ｘ50	一	102
CR4LWRS40	40	278.00	199.00	340ｘ180ｘ50	一	102
CR4LWRS44	44	309.00	221.00	340ｘ180ｘ50	一	108
CR4LWRS52	52	450.00	324.00	430ｘ220ｘ63	一	121
CR4LWRS56	56	540.00	386.00	460ｘ250ｘ72	一	146
