CLGR® 6×19+FC Galvanized Wire Rope

Name: CLGR® 6×19+FC Galvanized Wire Rope
Brand: CLGR®

CLGR® 6×19+FC Galvanized Wire Rope is the premier choice for applications where toughness against wear is the top priority.

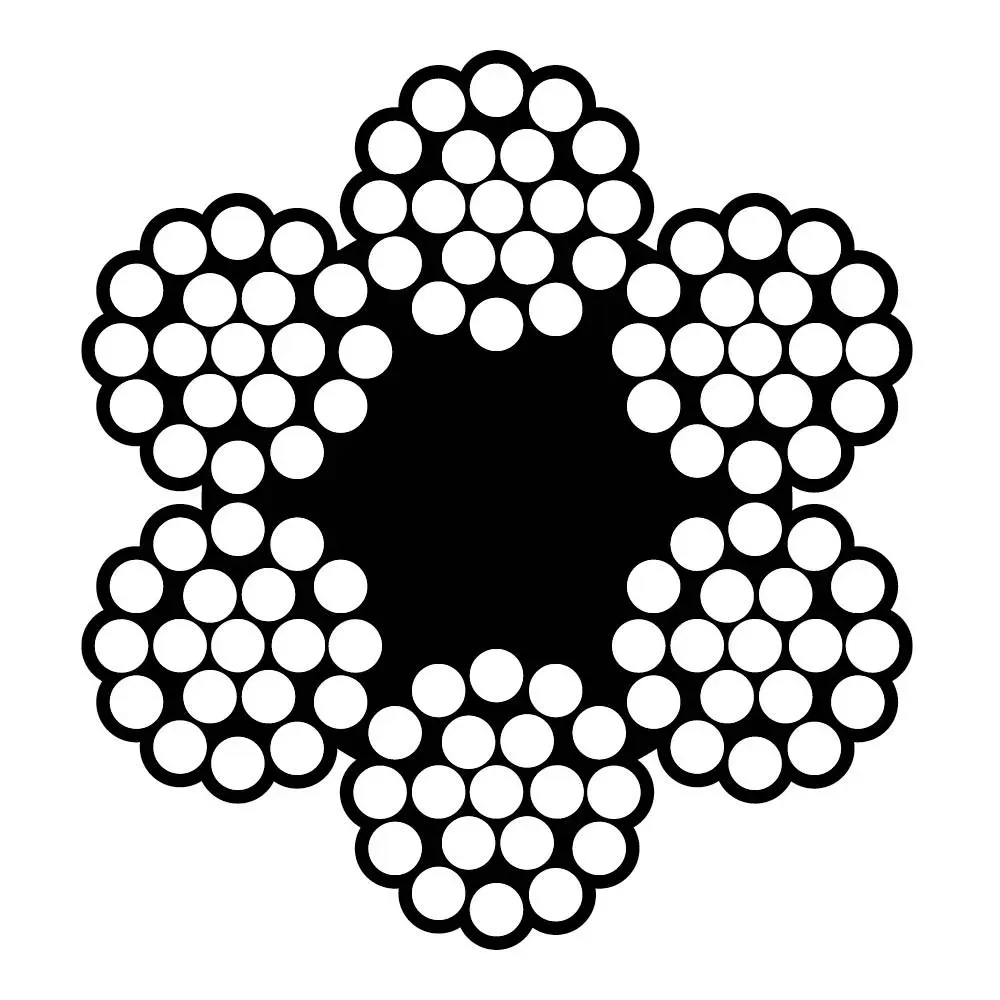

It consists of 6 strands of 19 wires, providing exceptional abrasion resistance, making it ideal for winch lines, garage door cables, and general-purpose tie-downs.

For superior corrosion protection, a hot-dip galvanized finish is available.

For applications requiring greater crush resistance than the standard fiber core can provide, we also offer a 6×7 FC (Fiber Core) version.

To Get A Quote >

Overview of CLGR® 6×19+FC Galvanized Wire Rope

Brand	CLGR®
Core	Fiber
Construction	6×19+FC
Finished	Galvanized
Standard	EN12385-4
Characristics	Right Hand Regular Lay
Country of Origin	China

Specifications of CLGR® 6×19+FC Galvanized Wire Rope

Part No	Nominal Dia.	Approx Weight	MBS(kN)
Part No	mm	kg/100m	1570/mm²	1770/mm²	1960/mm²
6x19fc03	3mm	3.24	4.34	4.89	5.42
6x19fc04	4mm	5.76	7.71	8.69	9.63
6x19fc05	5mm	9.00	12.05	13.58	15.04
6x19fc06	6mm	12.96	17.40	19.60	21.70
6x19fc08	8mm	23.04	30.80	34.80	38.50
6x19fc10	10mm	36.00	48.20	54.30	60.20
6x19fc12	12mm	51.84	69.40	78.20	—
6x19fc14	14mm	70.56	94.50	106.50	—
6x19fc16	16mm	92.16	123.40	139.10	—
6x19fc18	18mm	116.64	156.00	—	—
6x19fc20	20mm	144.00	193.00	—	—
6x19fc22	22mm	174.24	232.00	—	—
6x19fc24	24mm	207.36	277.00	—	—
6x19fc26	26mm	243.36	325.00	—	—
6x19fc28	28mm	282.24	377.00	—	—
