CLGR® Grade 100 Web Sling Hook with Safety Lock

Name: CLGR® Grade 100 Web Sling Hook with Safety Lock
Brand: CLGR®

CLGR® Grade 100 Web sling hook with Safety Lock, also called Webbing Sling Hook with Safety Latch.

Designed for webbing and round slings, this Web sling hook slides securely onto belts or slings for easy attachment to lifting points.

Simply thread the sling through the hook and connect it to your load. Hook is colored to match the round sling color, it can be permanently fixed or quickly removed as needed.

To Get A Quote >

Grade 100 Web Sling Hook with Safety Lock

CLGR® Grade 100 Web Sling Hook with Safety Lock Factory

CLGR® Grade 100 Web Sling Hook with Safety Lock Exporter

CLGR® Grade 100 Web Sling Hook with Safety Lock China

CLGR® Grade 100 Web Sling Hook with Safety Lock in China

CLGR® Grade 100 Web Sling Hook with Safety Lock Wholesale

 

Overview of CLGR® Grade 100 Web Sling Hook with Safety Lock

Brand	CLGR®
WLL	1T, 2T, 3T, 4T, 5T, 6T
Safety factor	5: 1
Material	Superior Alloy Steel
Processing	Drop Forged / Quenched and Tempered
Finish	Body: Powder Coated Latch: Dacroment / Self-color
Production Method	ODM/OEM
Tips	Color Code: Customized according to customers' requirements
Note	Use Only Grade 100 Attachments for Overhead Lifting

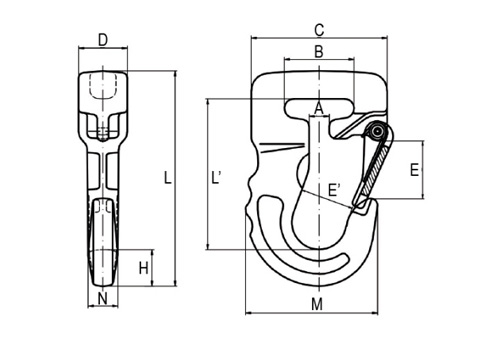

Specifications of CLGR® Grade 100 Web Sling Hook with Safety Lock

Part No.	WEIGHT (kG)	WLL (T)	B.L (T)	A±1	B±1	C±1	D±1	M±1	N±0.5	E±0.5	E'±0.5	L±3	L'±3	H±1
10-CR1055-1T	0.73	1	4	11.5	40	78	28	75.7	17	33	3o	124	87	21
10-CR1055-2T	1.27	2	8	18.5	44.5	91	35	90	21	40	39	148	103	27
10-CR1055-3T	2.3	3	12	21.5	54	114	45	110	26	41	4B	175	115	33
10-CR1055-4T	4.73	4	16	40.5	76	133	56	139	32	50.5	60	223.5	147	40.5
10-CR1055-5T	4.73	5	20	40.5	76	133	56	139	32	50.5	6o	223.5	147	40.5
10-CR1055-6T	4.73	6	24	40.5	76	133	56	139	32	50.5	6	223.5	147	40.5
