CLGR® DIN 1478 Turnbuckle With Stub End Galvanized also known as Stub and stub turnbuckles, Turnbuckles with 2 studs, Stud End Turnbuckle.
Certified to DIN 1478 standards, our closed body turnbuckle is manufactured from cold-drawn seamless steel tubing with stub ends crafted from C1045 or C1020 carbon steel.
Available in both zinc plated and hot-dip galvanized finishes, it offers superior corrosion resistance for architectural and marine rigging applications.
The design includes sight holes for visual verification of proper thread engagement, ensuring operational safety and preventing insufficient threading.
Fabricated from high-quality materials in compliance with international quality standards, this turnbuckle is available in both standard and custom sizes to meet specific project requirements.
| Brand | CLGR® |
| Technical Notes | Turnbuckle to DIN 1478 |
| Origin | China |
| Material | Body: Cold-drawn Seamless Steel Tube ( C1020 ) Stub End : C1020 / C1045 |
| Finish | Electric Galvanzied / Hot dip galvanized |
| Size | M6 M8 M10 M12 M16 M20 M22 M24 M30 |
| Important Notes | Not for lifting. Only suitable for using in tension. |
Tips:
Turnbuckles consist of a metal frame with right hand thread one end and left hand thread the other end.
Used for tensioning by rotating turnbuckle body without twisting attached rope or cable.

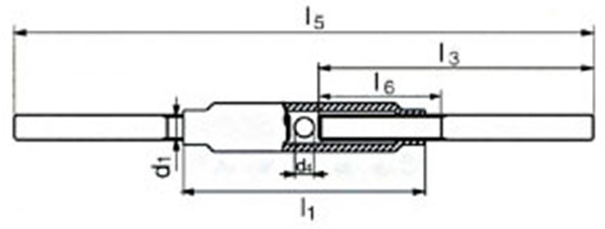

Part No. | d1 (mm) | d4 (mm) | I1 (mm) | I3 (mm) | I5 (mm) | I6 (mm) | ad (mm) | Weight |
(kg) | ||||||||
CR-1478-SE-06 | M6 | 6 | 110 | 120 | 240-330 | 65 | 90 | 14 |
CR-1478-SE-08 | M8 | 8 | 110 | 120 | 240-325 | 65 | 85 | 18 |
CR-1478-SE-10 | M10 | 8 | 125 | 150 | 300-395 | 75 | 95 | 32 |
CR-1478-SE-12 | M12 | 10 | 125 | 150 | 300-390 | 75 | 90 | 45 |
CR-1478-SE-16 | M16 | 10 | 170 | 200 | 400-520 | 100 | 120 | 90 |
CR-1478-SE-20 | M20 | 12 | 200 | 220 | 400-540 | 120 | 140 | 150 |
CR-1478-SE-24 | M24 | 12 | 255 | 260 | 520-700 | 150 | 180 | 275 |
CR-1478-SE-30 | M30 | 16 | 255 | 260 | 520-680 | 160 | 160 | 394 |
