CLGR® Lever Load Binder with Grab Hooks Grade 70 US. Fed. Spec.

Name: CLGR® Lever Load Binder with Grab Hooks Grade 70 US. Fed. Spec.
Brand: CLGR®

CLGR® Lever Load Binder with Grab Hooks Grade 70 US. Fed. Spec., also known as Load Binders Lever Style, L/binder Ratchet Wing Grab Hook, Lever Type Load Binder With Grab Hook, and Lever Chain Binder.

Made from carbon steel, this lever load binder undergoes machining, quenching, and tempering. Its galvanized finish ensures resistance against wear and tear, significantly prolonging its operational lifespan. The grab hook further enhances efficiency by ensuring a firm grip on your cargo.

Simple to operate: Attach the chain to the tension hooks, pull down the lever to tighten the chain, then wrap the excess chain around the binder for safe and secure storage.

To Get A Quote >

Overview of CLGR® Lever Load Binder with Grab Hooks Grade 70 US. Fed. Spec.

Brand	CLGR®
Standard	U.S. Federal Specification(Meets D.O.T. Specs.)
Material	Forged Steel
Safety Factor	3.5: 1
Processing	Drop Forged / Machining + Quenched and Tempered
Finish	Powder Coated
Size	1/4"-5/16", 5/16”-3/8”, 3/8”-1/2”, 1/2”-5/8”
Tips	Color Code: Customized according to customers’ requirements
Note	NOT FOR LIFTING, ONLY FOR LASHING. Do not exceed Working Load Limits (W.L.L).
Country of Origin	China

Specifications of CLGR® Lever Load Binder with Grab Hooks Grade 70 US. Fed. Spec.

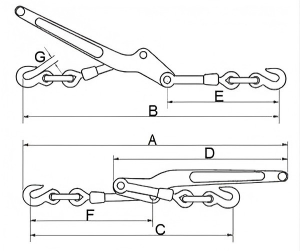

Part No.	Size	Min-Max Chain	WLL	Proof load	Ultimate Load	Weight Each	Handle Length	Dimensions (in.)
Part No.	Size	(in.)	(lbs.)	(lbs.)	(lbs.)	(lbs.)	(in.)	A	B	C	D	E	F	G
CRLLBHUS01	1/4″-5/16″	1/4-5/16	2600	5200	9200	3.6	11.42	20.66	18.7	15.35	11.42	8.85	8.85	0.35
CRLLBHUS02	5/16″-3/8″	5/16-3/8	5400	10800	19000	8.56	15.43	25.2	25.2	21.46	15.55	12.2	12.2	0.47
CRLLBHUS03	3/8″-1/2″	3/8-1/2	9200	18400	33000	12.38	17.24	28.15	28.7	24.61	17.52	13.58	13.58	0.59
CRLLBHUS04	1/2″-5/8″	1/2-5/8	11000	22000	440000	19.7	21	33.86	30.12	25.78	20.87	14.37	14.37	0.74
