CLGR® Grade 80 Eye Bend Hook

Name: CLGR® Grade 80 Eye Bend Hook
Brand: CLGR®

CLGR® Grade 80 Eye Bend Hook, also known as Grade 80 Eye Bent Grab Hook.

The Grade 80 Eye Bend Hooks are drop forged from alloy steel, quenched and tempered, with a finished surface painted or galvanized to enhance its durability and longevity, delivering critical load security with a 4:1 safety factor.

Avaliable size in 5/16″, 3/8″, 1/2″, special specifications and color can be customized according to your needs.

To Get A Quote >

Overview of CLGR® Grade 80 Eye Bend Hook

Brand	CLGR®
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Forged / Quenched and Tempered.
Finish	Powder coated / Hot dip galvanized / Galvanized
Size	5/16″, 3/8″, 1/2″ 13mm, 20mm
Tips	Color Code: Customized according to customers' requirements

Specifications of CLGR® Grade 80 Eye Bend Hook

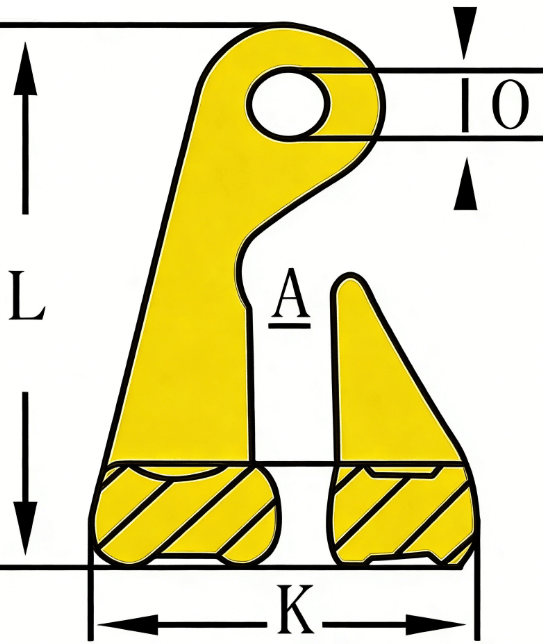

G80 Eye Bend Hook Type -1

G80 Eye Bend Hook Type -1

Part No.	Size	Dimensions				MBS	U.W.
Part No.	Size	A	K	L	O	KGS	KGS
CREBH516	5/16''	5/16”	2.24	3.07	0.51	10000	0.81
CREBH38	3/8''	3/8”	2.71	3.97	0.67	13000	1.76
CREBH12	1/2''	1/2”	3.26	4.4	0.82	27000	2.97

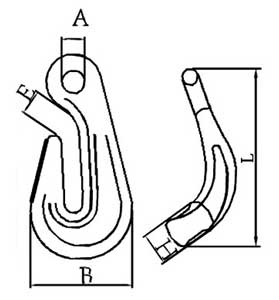

G80 Eye Bend Hook Type -2

G80 Eye Bend Hook Type -2

Part No.	Size	Dimensions					MBS	U.W
Part No.	Size	A	B	E	L	H	TONS	KGS
CREBH1.86T	13MM	13MM	57	15	100	18.5	7.44	0.4
CREBH2T	13MM	13MM	58	10	105	20	8	0.5
CREBH5T	20MM	20MM	92.5	16	170	30	20	1.7

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
