CLGR® Flemish Eye Steel Swage Sleeve S505

Name: CLGR® Flemish Eye Steel Swage Sleeve S505
Brand: CLGR®

CLGR® Flemish Eye Steel Swage Sleeve S505, also known as Standard Steel Sleeves S-505, Flemish Eye Steel Sleeves, S-505 Steel Swaging Sleeve, S-505 Flemish Eye Steel Swaging Sleeves.

A Flemish Eye Steel Swaging Sleeve is used for flemish eye wire rope splicing.

And it is also corrosion resistant, making it ideal for use in outdoor or marine environments.

Using this type of ferrules to swag Flemish Eye slings and thus achieving working loads limits higher than swaging using aluminum sleeves.

To Get A Quote >

Overview of CLGR® Flemish Eye Steel Swage Sleeve S505

Brand	CLGR®
Material	Superior Mild Steel
Processing	Machining + Extruded
Finish	Electric Galvanized / Self-color
Size(inch)	1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 9/16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/8″ , 1 1/4″ , 1 3/8″ , 1 1/2″, 1 3/4″ , 2″ , 2 1/4″ , 2 1/2″ , 2 3/4″ , 3″ , 3 1/4″ , 3 1/2″ , 3 3/4″ , 4″ , 4 1/2″ , 5″ , 6″
Size(mm)	8mm, 9-10mm, 11mm, 13mm, 14mm, 16mm, 18-19mm, 22mm, 25-26mm, 28-29mm, 31-32mm, 34-35mm, 37-38mm, 44-45mm, 50-52mm, 56-57mm, 62-64mm, 68-70mm,75-76mm, 85-87mm, 87-89mm, 93-95mm, 100-105mm, 112-114mm, 128-130mm, 150-155mm
Country of Origin	China

Specifications of CLGR® Flemish Eye Steel Swage Sleeve S505

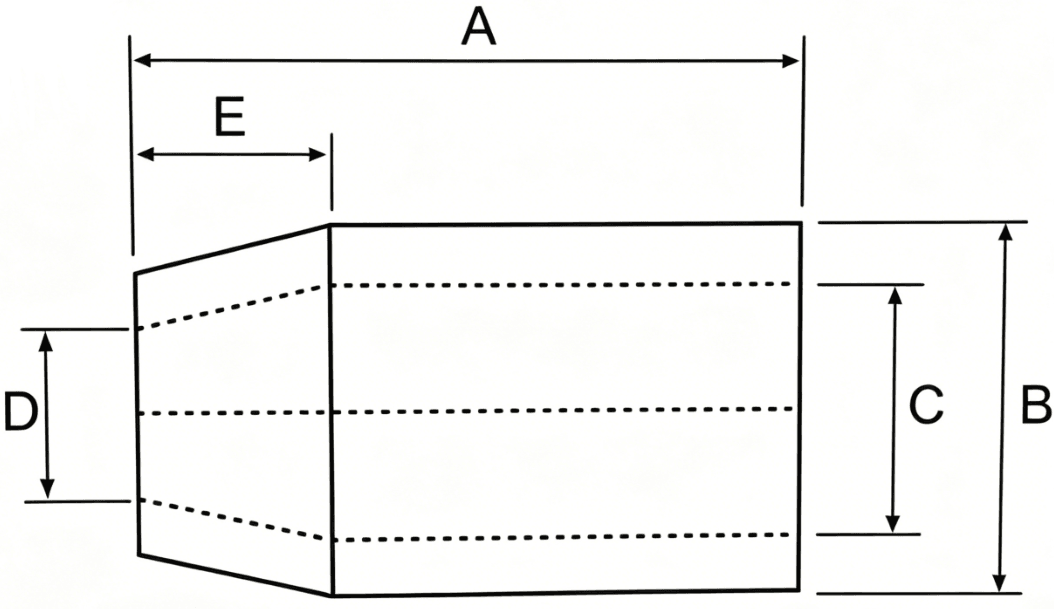

drawing-of-clgr®-flemish-eye-steel-swage-sleeve-s505-china-supplier

Part No.	For Wire Rope		Dimension (inch)					Max. After Swage Dimensions	Weight



	Size(mm)	Size(inch)	A	B	D	E	C	(inch)	kgs/100pcs
CRS505F1/4	6-7mm	1/4″	1	0.66	0.31	0.28	0.47	0.57	2.27
CRS505F5/16	8mm	5/16″	1.5	0.91	0.38	0.44	0.62	0.75	6.36
CRS505F3/8	9-10mm	3/8″	1.5	0.91	0.47	0.39	0.66	0.75	6.36
CRS505F7/16	11mm	7/16″	2	1.22	0.53	0.65	0.85	1.01	15
CRS505F1/2	13mm	1/2″	2	1.22	0.63	0.56	0.91	1.01	13
CRS505F9/16	14mm	9/16″	2.75	1.47	0.7	0.63	1.03	1.24	29
CRS505F5/8	16mm	5/8″	2.75	1.47	0.75	0.63	1.09	1.24	26
CRS505F3/4	18-19mm	3/4″	3.19	1.72	0.91	0.84	1.28	1.46	40
CRS505F7/8	22mm	7/8″	3.56	2.03	1.03	1	1.53	1.68	60
CRS505F1	25-26mm	1″	4	2.28	1.16	1.13	1.72	1.93	89
CRS505F1-1/8	28-29mm	1 1/8″	4.8	2.5	1.28	1.25	1.94	2.13	118
CRS505F1-1/4	31-32mm	1 1/4″	5.19	2.78	1.44	1.41	2.16	2.32	161
CRS505F1-3/8	34-35mm	1 3/8″	5.81	3	1.56	1.56	2.38	2.52	192
CRS505F1-1/2	37-38mm	1 1/2″	6.25	3.25	1.69	1.69	2.63	2.71	227
CRS505F1-3/4	44-45mm	1 3/4″	7.25	3.84	1.94	1.97	3.13	3.1	366
CRS505F2	50-52mm	2″	8.5	4.38	2.25	2.25	3.63	3.56	514
CRS505F2-1/4	56-57mm	2 1/4″	9.56	5.03	2.5	2.53	4.03	4.12	879
CRS505F2-1/2	62-64mm	2 1/2″	10.5	5.5	2.75	2.81	4.5	4.5	1068
CRS505F2-3/4	68-70mm	2 3/4″	11.5	5.75	3	3.09	4.75	4.7	1271
CRS505F3	75-76mm	3″	12	6	3.25	3.38	5	4.96	1335
CRS505F3-1/4	85-87mm	3 1/4″	13	6.5	3.86	3.54	5.43	5.37	1650
CRS505F3-1/2	87-89mm	3 1/2″	14	7	3.88	3.94	5.84	5.77	2106
CRS505F2-3/4	93-95mm	3 3/4″	15	7.5	4.06	4.25	6.31	6.23	2497
CRS505F4	100-105mm	4″	16	8.13	4.38	4.5	6.81	6.69	3087
CRS505F4-1/2	112-114mm	4 1/2″	18	9.13	4.88	5.06	7.66	7.45	4540
CRS505F5	128-130mm	5″	20	10.52	5.5	5.63	8.73	8.28	6600
CRS505F6	150-155mm	6″	24	12.54	6.5	6.75	10.2	9.93	12300
