CLGR® G80 Chain Rope Connector, also called chain-rope connector, Swivel choker /connection between rope and chain, Winch choker keyhole slider for forestry winch cable, Choker Glider, or G80 Kjettingtilkobler in Norwegian.
A G80 chain rope connector is made from high-quality grade 80 alloy steel and manufactured in accordance with EN1677, ensuring a reliable connection between chains and synthetic or steel ropes.
This G80 chain rope connector is not for lifting, but only for forestry logging.
It is suitable for use with grade 80 chains.
The G80 chain rope connector undergoes strict qualification testing, so there is no need to worry about its quality.
| Brand | CLGR® |
| Standard | In accordance with EN 1677 |
| Material | Superior Alloy Steel |
| Safety Factor | 4:1 |
| Processing | Drop Forged + Quenched and Tempered |
| Finish | Powder Coated |
| WLL | 6mm,8mm |
| Using | Suitable for use with chain of the same class |

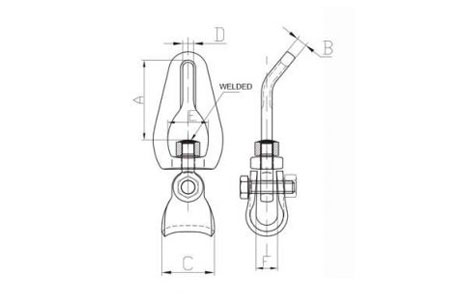

Part No. | B.L. (t) | A+-1.2 (mm) | B+-1 (mm) | C+-1 (mm) | D+-0.5 (mm) | E+-0.5 (mm) | F+-1.5 (mm) | Weight each (Kg) |
CR8CRCBZ6 | 6 | 64 | 10 | 49 | 9.5 | 28 | 20 | 0.63 |
CR8CRCBZ8 | 6 | 76 | 10 | 49 | 10.5 | 38 | 20 | 0.83 |
